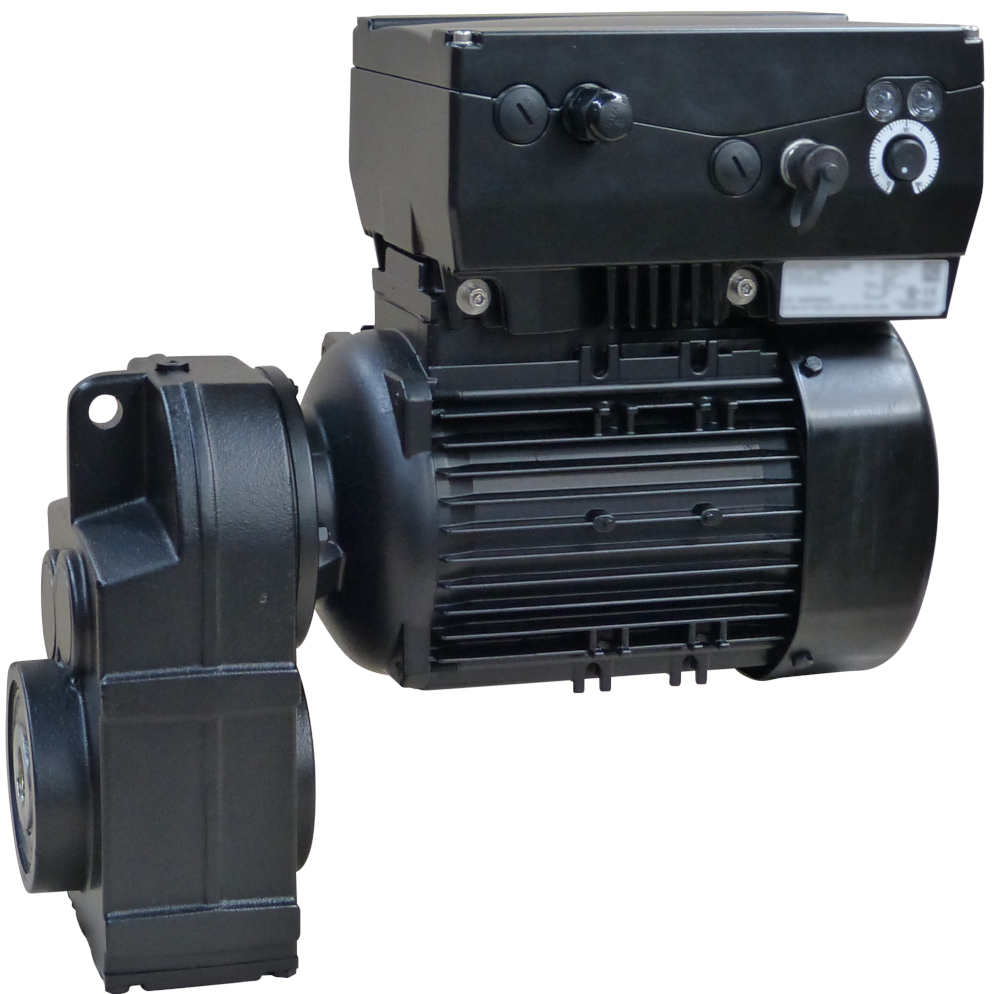

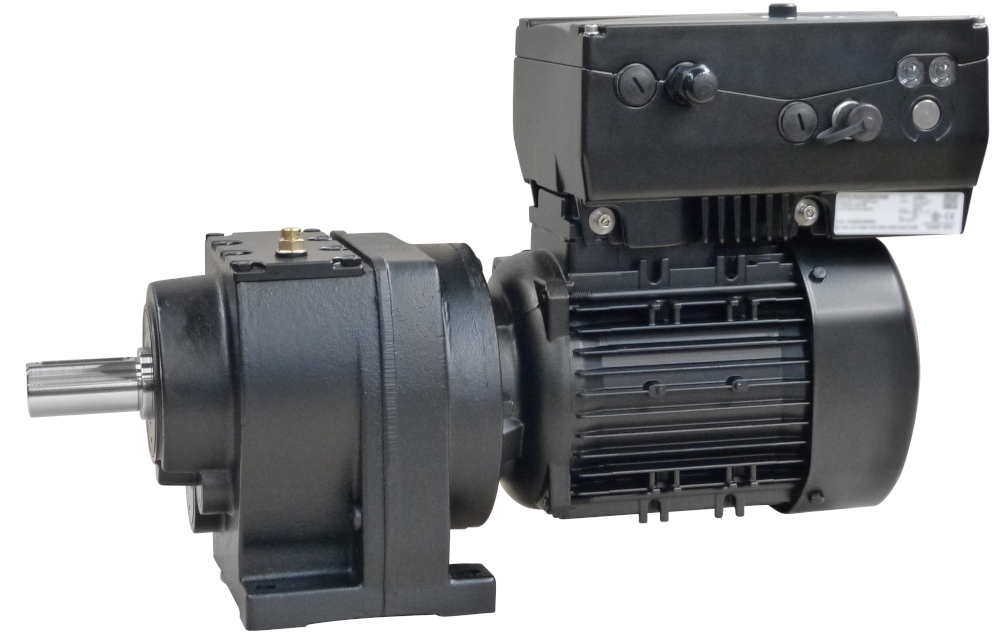

Three phase motors / Geared motors with integrated frequency inverter MU

Motors / geared motors with integrated frequency inverter can perform control and monitoring functions in addition to the drive task and can be integrated into centrally controlled systems.

• Operating modes:
  frequency control operation
  PID process controller
  fixed frequencies
• Protection functions:
  Blockage detection
  I²t evaluation
  Evaluation of motor protection TW or TS
• Standard switching frequency: 8kHz
• for motor assembly and standard switching frequency:
  EMC limit class C2 according to DIN EN 61800-3
• Service interface for commissioning and parameter setting with PC software
• Ambient temperature: max.40°C
• Options:
  brake control
  brake chopper / Braking resistor
  Fieldbus connection

Frequency inverter

Type	Pmot [kW]	Un	In [A]	Iin [A]
MUM05	0.37	1x230V	2.3	4.5
MUM06	0.55	1x230V	3.2	5.6
MUM07	0.75	1x230V	3.9	6.9
MUM08	1.1	1x230V	5.2	9.2
MUM09	1.5	1x230V	7	13.2
MUA06	0.55	3x400V	1.7	1.4
MUA07	0.75	3x400V	2.3	1.9
MUA08	1.1	3x400V	3.1	2.6
MUA09	1.5	3x400V	4	3.3
MUB10	2.2	3x400V	5.6	4.6
MUB11	3	3x400V	7.5	6.2
MUB12	4	3x400V	9.5	7.9
MUC13	5.5	3x400V	13	10.8
MUC14	7.5	3x400V	17.8	14.8

Pmot [kW]

recommended motor power

Un

mains voltage

In [A]

Output current

Iin [A]

Input current

Frequency inverter MUM

Frequency inverter MUA, MUB, MUC

mains voltage 3x400V: 3 x 200VAC -10% .. 480VAC +10% 50/60 Hz

2x Digital IN, 1x Digital OUT, 1x Analog IN
10V supply, 24V supply, Digital hardware release

Options:

• additional inputs/outputs:
  4x Digital IN, 2x Digital OUT, 2x Analog IN, 1x Analog OUT, 2x Relais
  10V supply, 24V supply, Digital hardware release
• foil keypad with potentiometer
• brake control
• brake chopper / Braking resistor
• Fieldbus connection:
  EtherCAT
  Profibus
  ProfiNET
• functional safety STO

accessories Frequency inverter MU

• PC software for commissioning and parameter setting
• Programming and diagnostic cable for PC
• Bluetooth stick
